AP Series Air Powered Leveler
Pit Style, Air Powered Dock Leveler
Poweramp® embraces the benefits of air powered technology with the AP Series dock leveler. The AP Series by Poweramp® is an air powered dock leveler that provides dependability and superior structure at a price which rivals most mechanical dock levelers. This leveler is available in a wide range of sizes and capacities and can be modified for special applications.
Standard AP Series sizes include 6’, 6’6”, & 7’ standard widths, and 6’, 8’ & 10’ standard lengths. Standard capacities for the AP Series are 25K, 30K, 35K, 40K, 45K, & 50K CIR (Comparative Industry Rating).
Available with
SPECIFICATIONS
| AP-66 | 6' x 6' |
|---|---|
| AP-68 | 6' x 8' |
| AP-610 | 6' x 10' |
| AP-656 | 6'6" x 6' |
| AP-658 | 6'6" x 8' |
| AP-6510 | 6'6" x 10' |
| AP-76 | 7' x 6' |
| AP-78 | 7' x 8' |
| AP-710 | 7' x 10' |
|
DYNAMIC CAPACITY / COMPARATIVE INDUSTRY RATING |
|---|
| 12,500 / 25,000 |
| 15,000 / 30,000 |
| 17,500 / 35,000 |
| 20,000 / 40,000 |
| 22,500 / 45,000 |
| 25,000 / 50,000 |
PRODUCT DOCUMENTS
- AP Brochure
- AP Spec Sheet
- AP Owner's/User Manual
- AP Series Check Sheet
- Poweramp AP Pit Detail
- Total Site Survey
- Leveler Grade Chart
- Spanish Total Site Survey
- 3-Sided Box / Leveler Installation
- 4-Sided Box / Leveler Installation
- Preventative Maintenance Program
- Poweramp Line Card
- AP/DA Series Dock Leveler PM Checklist
- Spanish AP Brochure
- Spanish Poweramp Full Product Overview
-

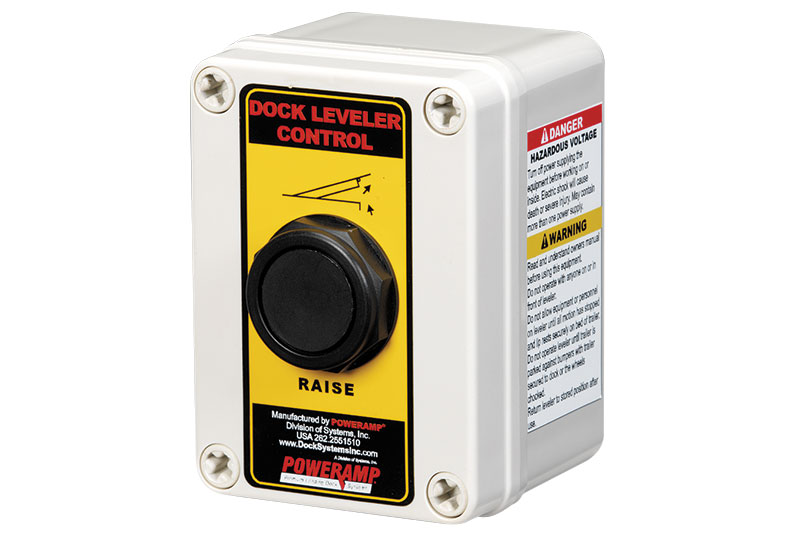

Single push button operation
Simple press and hold push button operation raises leveler. Releasing button allows leveler to lower to the truck bed.
-
Four sided box construction
Stronger more durable four sided box construction
-
High volume low pressure blower
Reliable stationary mounted fan blower delivers a low pressure volume of air to efficiently raise and position the leveler onto the truck
-
Sliding Style Toe Guards
This leveler utilizes sliding style toe guards for added safety
-
Optional Inter-lockable Electrical Push Button Controls
The leveler can utilize an inter-lockable electrical push-button. This feature allows the leveler to be easily interlocked to the overhead door , red green outside lights truck restraints or other items at the loading dock.
-
Connect Online
Option to connect to myQ Dock Management and view the leveler activity online.
